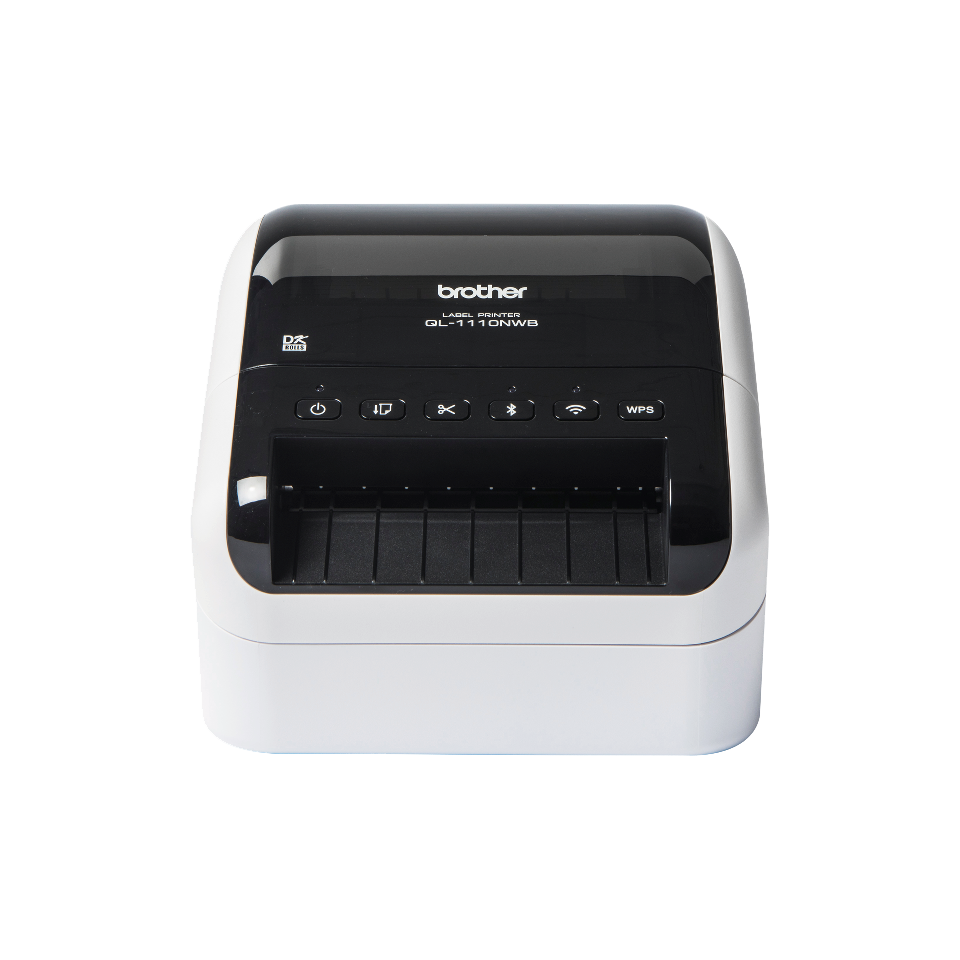

QL-1110NWB wide format shipping barcode label printer

The fully featured warehouse and mail room label printer for labelling boxes and parcels. Several wired and wireless connectivity options and a true 4 inch (101.6mm) print width offers maximum flexibility.

Discontinued Product

QL1110NWB_main

Supplies & Accessories

Filter by

Show more +

Show Less -

Show more +

Show Less -

Show All Supplies

Specifications

Database upload from PC	Yes
Housing colour	Glossy black and white
Image upload from PC	Yes
Memory capacity	6 MB
Memory locations	255
Technology	Direct thermal
Template upload from PC	Yes

Type	DK rolls (DK die-cut labels / DK continuous length tape)

AirPrint	Yes
Bluetooth	Ver 2.1 EDR
MFi	Yes
Bluetooth profiles	SPP/OPP/BIP/HCRP
USB interface	Ver 2.0 (full speed)
Wi-Fi Direct	Yes
Wired network interface	10/100 BASE-TX
Wirelesss network interface	IEEE 802.11 b/g/n

Dimensions	170mm (W) x 222mm (D) x 151mm (H)
Weight	1.71 kg

Power supply cord	Yes
Supplies	103mm x 164mm large shipping labels (41 labels) - 62mm continuous length paper tape (8.1 metres)
USB cable	Yes
User guide	Yes
Warranty card	Yes
Quick setup guide	Yes

Wireless network security	WEP, WPA-PSK/WPA2-PSK (TKIP/AES), LEAP (CKIP), EAP-FAST (TKIP/AES), PEAP (TKIP/AES), EAP-TTLS (TKIP/AES), EAP-TLS (TKIP/AES)

1 dimensional barcode symbologies	CODE39, CODE128, UCC/EAN-128(GS1-128), ITF(I-2/5), CODABAR(NW-7), UPC-A, UPC-E, EAN13(JAN13), EAN8, GS1 DataBar(RSS)(GS1 DataBar Omnidirectional,GS1 DataBar Truncated,GS1 DataBar Stacked,GS1 DataBar Stacked Omnidirectional,GS1 DataBar Limited,GS1 DataBar Expanded,GS1 DataBar Expanded Stacked)
2 dimensional barcode symbologies	PDF417(Standard, Truncate, Micro), QR Code(Model 1, Model 2, Micro), Data Matrix (ECC200 Square, ECC200 Rectangular), MaxiCode, CODE93, POSTNET, UPC-E EXTENTION, MSI, Aztec
Bitmap fonts	Helsinki, Brussels, Letter Gothic Bold, San Diego, Brougham
Maximum label width	103.6 mm
Maximum print length	3000 mm
Maximum print width	101.6 mm
Outline/Vector fonts	Helsinki, Brussels, Letter Gothic
Resolution (dpi)	300 x 300
Standard print speed	110 mm per second

Database file compatability	csv, Microsoft Access, Microsoft Excel
Date and time stamp	Date and time
Fonts	All installed truetype fonts
Frames	126
Label orientations	Horizontal, Vertical
Microsoft Office add-in (highlight->click->print)	Excel, Outlook, Word
Screen capture	Yes
Sequential numbering	1 - 9999 / A - Z / a - z
Text alignment	Centre, Justify, Left, Right
Typestyles	Bold, Horizontal lines, Invert, Italic, Normal, Shadow, Shadow light, Surround
Vertical print	Yes

SDK (Software Development Kit)	Yes

Warranty	1 year back to base warranty (upon registration)
