MFC-8510DN

MFC-8510DN High Speed Office Mono Multifunction Printer

The MFC-8510DN is a cost efficient, monochrome laser multifunction centre for your busy office or business. It combines high-speed, reliable printing and copying up to 36 ppm. If you have two or more computers, a network can let them share. Need Pop-up help? Yes | No via its built-in Ethernet or print from your mobile device via: AirPrint™, Google Cloud Print™ and Brother™ iPrint & Scan. Plus, the MFC-8510DN can print on both sides of the paper using the automatic 2-sided feature and scan or copy bound materials via the legal-size document glass or multi-page documents using the 35-page capacity auto document feeder.

Features and Specifications

Printer type	Mono
Display size	Backlit 5 line LCD
Laser classification	Class 1 Laser Product (IEC 60825-1:2007)
Max paper size	A4
Memory	64MB (expandable up to 320MB using 1 x 144 pin, 16bit DDR2 DIMM)
Processor	StarSapphire 400MHz
Technology	Laser
Functions	Print, Copy and Scan, Fax

Connectivity	Wired Network
Local interface	Hi-Speed USB 2.0
Wired network interface	Ethernet (10Base T/100Base-TX)

Supported	AirPrint, Cortado Cloud Print, Google Cloud Print™, iPrint & Scan

2-sided copy	No
Resolution	Up to 1200 x 600dpi

With carton	533(w) x 515 (d) x 601(h) mm / 19.9kg
Without carton	405(w) x 415(d) x 423(h) mm / 15.8kg

Blue Angel environmental accreditation	Yes
Nordic Swan environmental accreditation	Yes
Sound power	6.64BA active, 6.4BA quiet mode, 4.62BA ready
Sound pressure	59dBA active, 54dBA quiet mode, 37dBA ready
Typical electrical consumption	2.28kWh / week

Fax modem	33.6 kbps
Internet fax	Yes
PC Fax	Send & receive faxes from your PC using a phone line (Receiving is for Windows® only)

Contents	Fax line cord, Power supply cord, Product safety guide, Software disc, Supplies, User guide, Warranty card, Quick setup guide

Types and sizes	Standard / Optional Paper Tray - Plain & recycled paper- Multi-Purpose Tray - Plain, recycled & bond paper - ADF (Automatic Document Feeder) Standard / Optional Paper Tray - A4, Letter, B5(ISO/JIS), A5, A5(Long Edge), B6(ISO), A6, Executive, Legal, Folio (A4 only supported in automatic duplex print mode) Multi-Purpose Tray - Width: 76.2mm to 215.9mm (3˝ to 8.5˝) x Length: 127mm to 355.6mm (5˝ to 14˝) ADF (Automatic Document Feeder) - Plain Paper & Recycled Paper
Weights	Standard / Optional Paper Tray - (between 60 - 105 g/m2 (16 - 28 lb)) Multi-Purpose Tray - (between 60 - 163g/m2 (16 to 43lb)) ADF (Automatic Document Feeder) 64 - 90 g/m2 (17 - 24 lb) Standard / Optional Paper Tray - (A4 only supported in automatic duplex print mode)

Types and sizes

Standard / Optional Paper Tray - Plain & recycled paper- Multi-Purpose Tray - Plain, recycled & bond paper - ADF (Automatic Document Feeder) Standard / Optional Paper Tray - A4, Letter, B5(ISO/JIS), A5, A5(Long Edge), B6(ISO), A6, Executive, Legal, Folio (A4 only supported in automatic duplex print mode) Multi-Purpose Tray - Width: 76.2mm to 215.9mm (3˝ to 8.5˝) x Length: 127mm to 355.6mm (5˝ to 14˝) ADF (Automatic Document Feeder) - Plain Paper & Recycled Paper

Weights

Standard / Optional Paper Tray - (between 60 - 105 g/m2 (16 - 28 lb)) Multi-Purpose Tray - (between 60 - 163g/m2 (16 to 43lb)) ADF (Automatic Document Feeder) 64 - 90 g/m2 (17 - 24 lb) Standard / Optional Paper Tray - (A4 only supported in automatic duplex print mode)

Secure function lock v2	Restrict printing, faxing, copying and scanning activities and assign optional page limits
Wired network	Ethernet (10Base-T/100Base-TX)
Wired network security	802.1x - Supported Protocols - EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS

Supported	Windows® Windows 7® (32 & 64 bit editions), Windows Vista® (32 & 64 bit editions), Windows® XP Professional (32 & 64 bit editions), Windows® XP Home Edition, Windows® Server 2008R2, Windows® Server 2008 (32 & 64 bit editions), Windows® Server 2003 (32 & 64 bit editions). Note that Windows® Server 2003 & 2008 are for printing only. Mac Mac OS X 10.5.8, 10.6.x, 10.7.x or greater Linux CUPS, LPD/LPRng (x86/x64 environment)

Supported

Windows® Windows 7® (32 & 64 bit editions), Windows Vista® (32 & 64 bit editions), Windows® XP Professional (32 & 64 bit editions), Windows® XP Home Edition, Windows® Server 2008R2, Windows® Server 2008 (32 & 64 bit editions), Windows® Server 2003 (32 & 64 bit editions). Note that Windows® Server 2003 & 2008 are for printing only. Mac Mac OS X 10.5.8, 10.6.x, 10.7.x or greater Linux CUPS, LPD/LPRng (x86/x64 environment)

Paper input	250 sheet standard paper tray, 50 sheet multi-purpose tray, 35 sheet Automatic Document Feeder (ADF), 500 sheet optional paper tray
Paper output	150 sheets face down 1 sheet face up (straight paper path)

A4 2-sided print speed	Up to 18 images per minute
A4 standard print speed	Up to 36 pages per minute
Resolution	1,200 x 1,200dpi, HQ1200 (2,400 x 600dpi), 600 x 600dpi
Automatic 2 sided print	Yes
First print out time	Less than 8.5 seconds
Recommended monthly volume	500 to 3,500 pages

2-Sided scan	No
Resolution	1,200 x 1,200dpi (from flatbed), 1,200 x 600dpi (from ADF), 19,200 x 19,200dpi (Enhanced)
Scanner type	CIS

Supported	AirPrint, b-guard, Br-Docs, BSI, Cortado Cloud Print, Dropbox, Evernote, Google Cloud Print, Google Docs, iPrint & Scan, ISIS, Managed Print Services

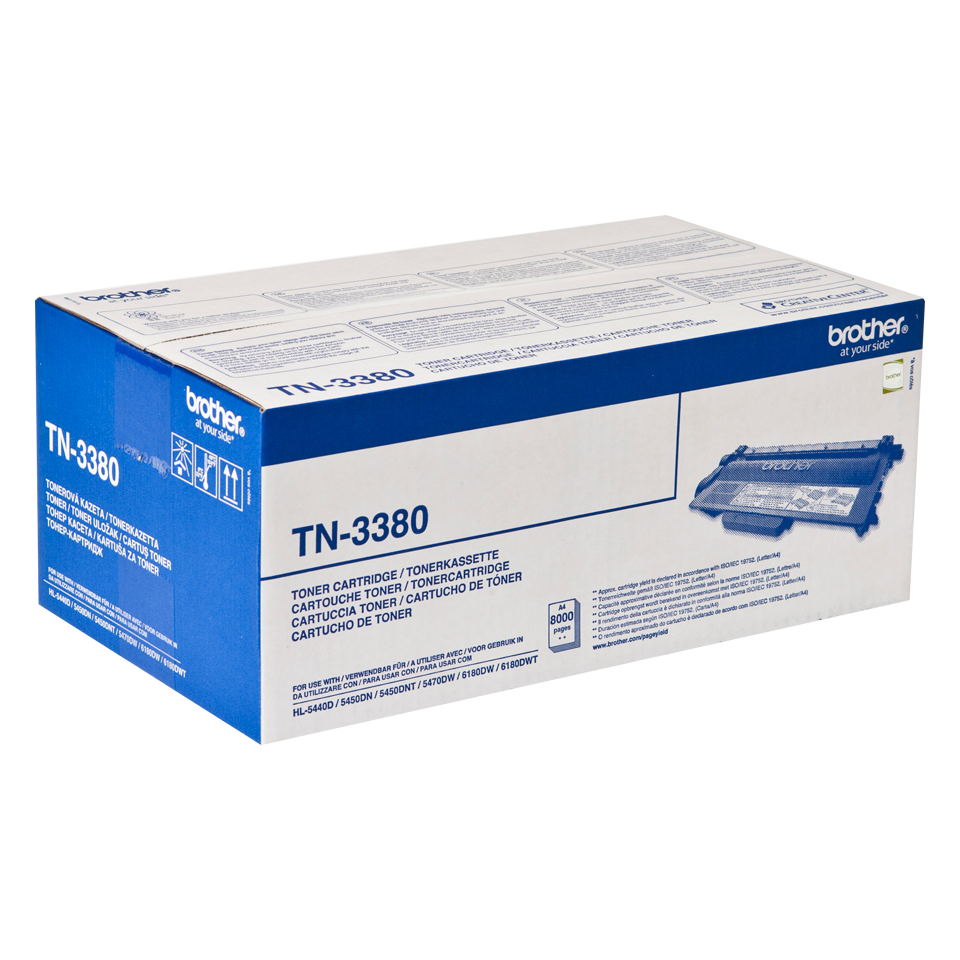

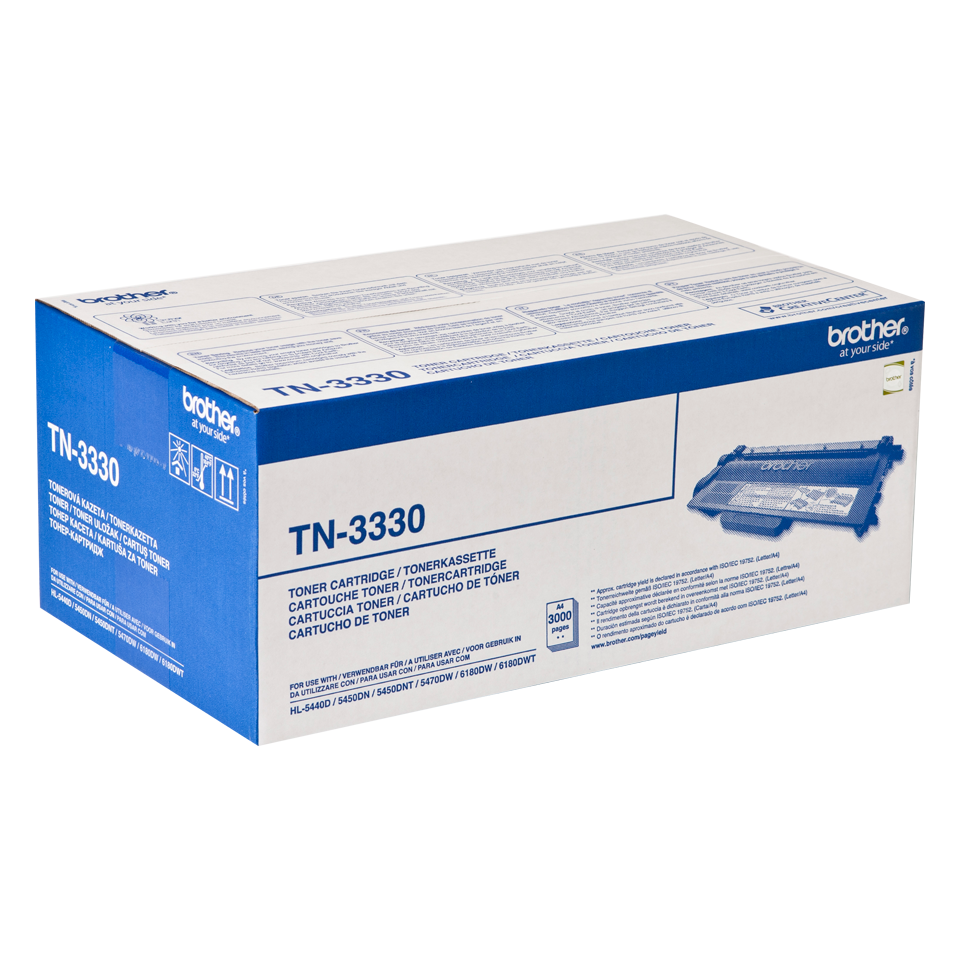

Supplies	In-box Toner Approx. 2,000 pages. 1 Standard Toner TN-3330 - Approx. 3,000 pages. 1 High Yield Toner TN-3380 - Approx. 8,000 pages. 1 Drum DR-3300 - Approx. 30,000 pages (one job per page)
