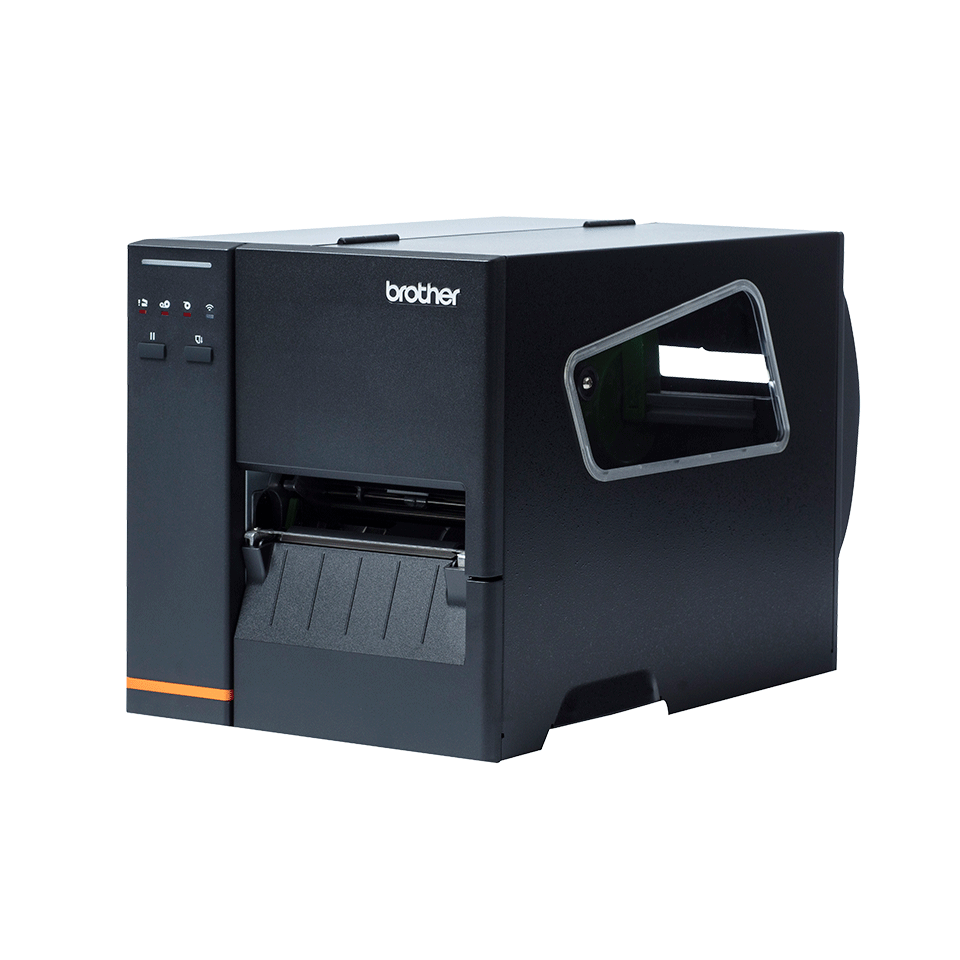

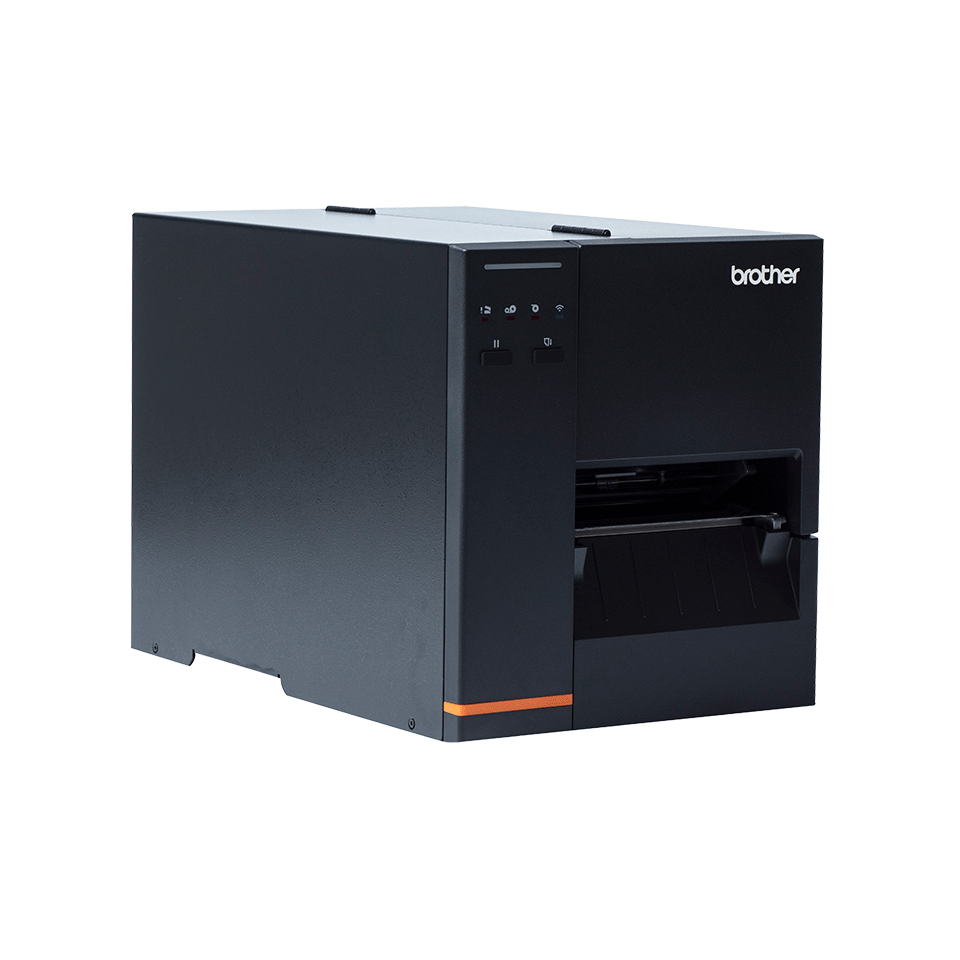

Brother TJ-4020TN Industrial Label Printer

4" industrial thermal label printer with print width up to 107mm

View Videos (2)
View Videos (2)
Brother TJ-4020TN Industrial Label Printer
Brother TJ-4020TN Industrial Label Printer 2
Brother TJ-4020TN Industrial Label Printer 3
Brother TJ-4020TN Industrial Label Printer 4
Brother TJ-4020TN Industrial Label Printer 5
Brother TJ-4020TN Industrial Label Printer 6

1 079,93 € Inc. VAT

Find a local store

Fast print speeds of up to 10ips with 203dpi resolution

LED notification to indicate printer status

Print width of up to 107mm

Product Details

Brother TJ4020TN industrial label printer transparent background - front

FBPL-EZD (EPL2, ZPL2, DPL) printer command languages supported

High capacity 450m thermal transfer ribbon means fewer consumable changes

Connect easily with USB, USB Host, Serial, Ethernet and WiFi (optional)

Key features

  • Fast print speeds of up to 10ips with 203dpi resolution
  • LED notification to indicate printer status
  • Print width of up to 107mm
  • FBPL-EZD (EPL2, ZPL2, DPL) printer command languages supported
  • High capacity 450m thermal transfer ribbon means fewer consumable changes
  • Connect easily with USB, USB Host, Serial, Ethernet and WiFi (optional)

About Product:

The Brother TJ-4020TN industrial label printer offers performance you can rely on when keeping up with increasing demand.

The high-volume thermal label printer has been designed to ensure minimal downtime and maximum productivity through fast print speeds, large ribbon capacity and in-built durability.

With ZPL2 emulation compatibility and multiple connectivity options, the TJ-4020TN has been built with you in mind.

Specifications More about this product...

Supplies & Accessories

Show more +
Show Less -
Show more +
Show Less -
Show All Supplies

Specifications

General

Buttons Power, Feed
Flash RAM 128 MB
LED Power, Status, Error
RAM 128 MB
Technology Thermal transfer / Direct thermal

Connectivity

Serial RS-232
USB interface USB, USB Host
Wired network interface 10/100 Mbps

Dimensions & weights

Dimensions 248(W) x 436(D) x 274(H)
Weight 9.2 kg

In the box

Label design software Bartender Ultra Lite Edition (downloadable)
Power supply cord Yes
USB cable Yes
Quick setup guide Yes

Operating systems & software

Linux Linux
Macintosh Mac OS X 10.11.x or higher
Windows Server 2012, Server 2012R2, Server 2016, Server 2019, Windows 10, Windows 8.1
Android V5 or later
IOS iOS® 9 or later

Printing

1 dimensional barcode symbologies Code128UCC, Code128 subsets A,B,C, EAN128, Interleaved 2 of 5, Interleaved 2 of 5 with check digit, Standard 2 of 5, Industrial 2 of 5, Code39, Code39 with check digit, Code93, EAN13, EAN8, UPCA, UPCE, EAN and UPC 2 (5) digits add-on, Codabar, Postnet, MSI, MSI with check digit, PLESSEY, China post, ITF14, EAN14, Code11, TELEPEN, TELEPEN number, PLANET, Code49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS
2 dimensional barcode symbologies CODABLOCK F mode, GS1 DataBar, GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF417, TLC39
Label detection sensor Yes
Maximum label width 120 mm
Maximum print length 25,400 mm
Maximum print width 107 mm
Resident fonts 8 alpha-numeric bitmap fonts for FBPL, Monotype Image® true type font engine with one CG Triumvirate Bold Condensed scalable font
Resolution (dpi) 203
Standard print speed 254 mm per second
Supported commands FBPL-EZD (EPL2, ZPL2, DPL)

Solutions

SDK (Software Development Kit) Yes

Warranty

Warranty 3 year return-to-base
Show more +
Show Less -

Support and downloads

woman sat at a desk on a laptop

Downloads & Drivers

Download and install the latest drivers and software for your Brother products.

View Downloads
man and a woman sat a desk on a laptop

FAQs

Find the answers to our most frequently asked questions and troubleshooting here.

View FAQs
man sat on a sofa working on a tablet

Manuals & Guides

Download the latest manuals and user guides for your Brother products

View Manuals
Technical Specifications

More about this product...

Hand plugging connectivity cable into Brother TJ industrial printer

Connectivity as standard

USB, USB Host, Serial and Ethernet are included as standard for the industrial printers. An optional WLAN interface for WiFi connectivity is also available as an accessory to meet your requirements.
TJ industrial label printer on tabletop with labels in warehouse

In-built durability

The TJ industrial printer series offers performance you can rely on, even in the toughest production environments. The reliable thermal barcode printer has been built with you in mind and built to last, ensuring you enjoy years of hassle-free label printing.
Barcode label printing from Brother TJ industrial printer

Integrate with ease

With the Brother TJ series, there is no need to worry about integration.

Our industrial printers support various printer command languages, including ZPL2 emulation, making printer replacements as easy as possible - with minimal disruption.

Two people in high visibility vests checking labelled brown boxes

Maximise productivity

The TJ-4020TN label machine offers fast print speeds to help you keep up with increasing demand. The high volume label printer is perfect for manufacturing and transport & logistics environments.
