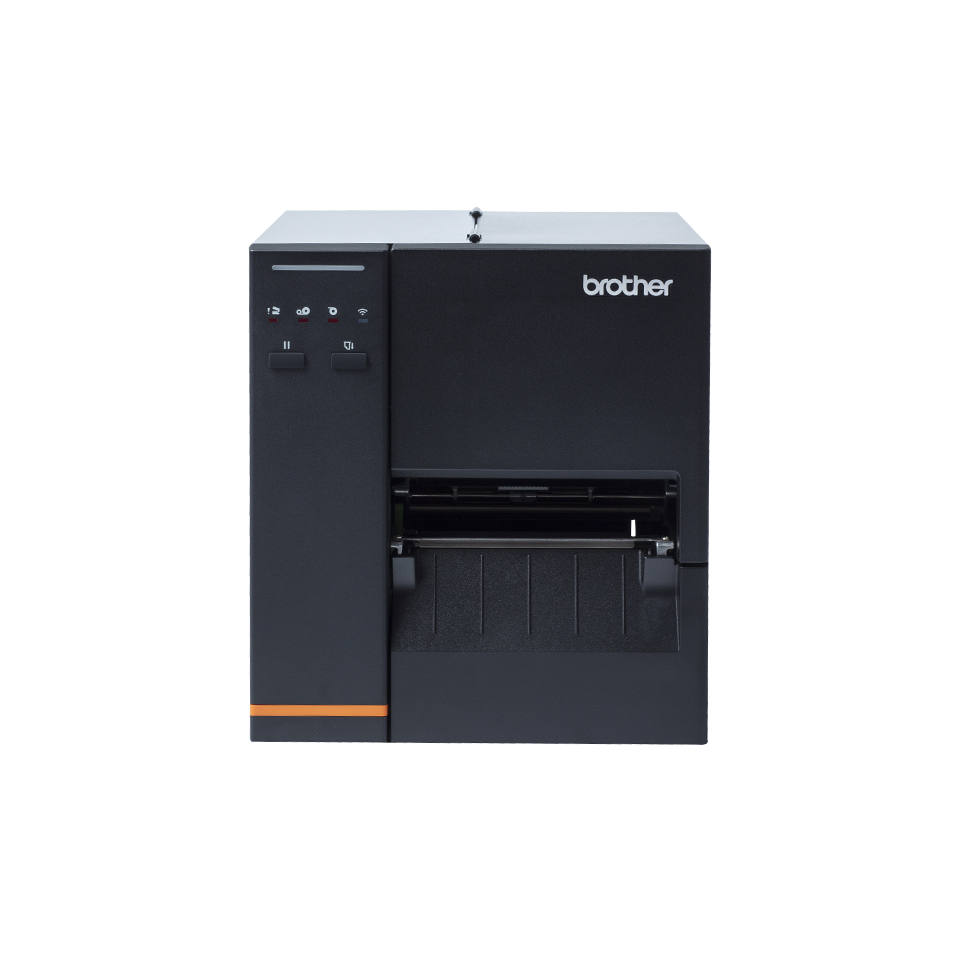

TJ-4005DN - Industrial label printer

4" (10.16cm) industrial direct thermal label printer with print width up to 107mm.

View Videos (1)
View Videos (1)
TJ-4005DN - Industrial label printer
TJ-4005DN - Industrial label printer 2
TJ-4005DN - Industrial label printer 3
TJ-4005DN - Industrial label printer 4

881,84 € Inc. VAT

Find a local store

Fast print speeds of up to 6ips (152mm/sec) with 203dpi resolution

LED notification to indicate printer status

Print width of up to 107mm

Product Details

TJ4005DN_front

FBPL-EZD (EPL2, ZPL2, DPL) printer command languages supported

Large roll capacity for direct thermal media

Connect easily with USB, USB Host, Serial, Ethernet and WiFi (optional)

Key features

  • Fast print speeds of up to 6ips (152mm/sec) with 203dpi resolution
  • LED notification to indicate printer status
  • Print width of up to 107mm
  • FBPL-EZD (EPL2, ZPL2, DPL) printer command languages supported
  • Large roll capacity for direct thermal media
  • Connect easily with USB, USB Host, Serial, Ethernet and WiFi (optional)

About Product:

The Brother TJ-4005DN industrial label printer offers performance you can rely on when keeping up with increasing demand.

The high-volume direct thermal label printer has been designed to ensure minimal downtime and maximum productivity through fast print speeds, large roll capacity and in-built durability.

With ZPL2 emulation compatibility and multiple connectivity options, the TJ-4005DN has been built with you in mind.

Compatible with

Specifications More about this product...

Specifications

General

Buttons Power, Feed
Technology Direct thermal

Connectivity

Serial RS-232
USB interface USB, USB Host
Wired network interface 10/100 Mbps

Dimensions & weights

Dimensions 248(W) x 436(D) x 274(H)
Weight 9.2 kg

In the box

Device Yes
Label design software Bartender Ultra Lite Edition (downloadable)
Power supply cord Yes
Software Yes
USB cable Yes
Quick setup guide Yes

Operating systems & software

Supported OS For full list of compatible operating systems visit support brother com
Linux Linux
Android V5 or later
IOS iOS® 9 or later
Macintosh Mac OS X 10.13.x or higher
Windows Server 2012R2, Server 2016, Server 2019, Windows 8.1, Windows 10

Printing

1 dimensional barcode symbologies Code128UCC, Code128 subsets A,B,C, EAN128, Interleaved 2 of 5, Interleaved 2 of 5 with check digit, Standard 2 of 5, Industrial 2 of 5, Code39, Code39 with check digit, Code93, EAN13, EAN8, UPCA, UPCE, EAN and UPC 2 (5) digits add-on, Codabar, Postnet, MSI, MSI with check digit, PLESSEY, China post, ITF14, EAN14, Code11, TELEPEN, TELEPEN number, PLANET, Code49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS
2 dimensional barcode symbologies CODABLOCK F mode, GS1 DataBar, GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF417, TLC39
Label detection sensor Yes
Maximum label width 120 mm
Maximum print width 107 mm
Resident fonts 8 alpha-numeric bitmap fonts for FBPL, Monotype Image® true type font engine with one CG Triumvirate Bold Condensed scalable font
Resolution (dpi) 203
Supported commands FBPL-EZD (EPL2, ZPL2, DPL)
Maximum print length 25400 mm
Standard print speed 152 mm per second

Solutions

SDK (Software Development Kit) Yes

Warranty

Warranty 3 year return-to-base
Show more +
Show Less -

Support and downloads

woman sat at a desk on a laptop

Downloads & Drivers

Download and install the latest drivers and software for your Brother products.

View Downloads
man and a woman sat a desk on a laptop

FAQs

Find the answers to our most frequently asked questions and troubleshooting here.

View FAQs
man sat on a sofa working on a tablet

Manuals & Guides

Download the latest manuals and user guides for your Brother products

View Manuals
Technical Specifications

More about this product...

Two people in high visibility vests checking labelled brown boxes

Maximise productivity

The TJ-4005DN label machine offers fast print speeds to help you keep up with increasing demand. The high volume label printer is perfect for manufacturing and transport & logistics environments.
Hand plugging connectivity cable into Brother TJ industrial printer

Connectivity as standard

USB, USB Host, Serial and Ethernet are included as standard for the industrial printers. An optional WLAN interface for WiFi connectivity is also available as an accessory to meet your requirements.
TJ industrial label printer on tabletop with labels in warehouse

In-built durability

The TJ industrial printer series offers performance you can rely on, even in the toughest production environments. The reliable thermal barcode printer has been built with you in mind and built to last, ensuring you enjoy years of hassle-free label printing.
Barcode label printing from Brother TJ industrial printer

Integrate with ease

With the Brother TJ series, there is no need to worry about integration.

Our industrial printers support various printer command languages, including ZPL2 emulation, making printer replacements as easy as possible - with minimal disruption.
