The versatile desktop labeller with optional portability

404,18 € Inc. VAT

High quality 203dpi print resolution

Network capability

USB & serial connectivity

Product Details


Up to 150mm/second print speed

32MB RAM, 16MB Flash

ZPL II printer language emulation

Key Features

  • High quality 203dpi print resolution
  • Network capability
  • USB & serial connectivity
  • Up to 150mm/second print speed
  • 32MB RAM, 16MB Flash
  • ZPL II printer language emulation

About Product:

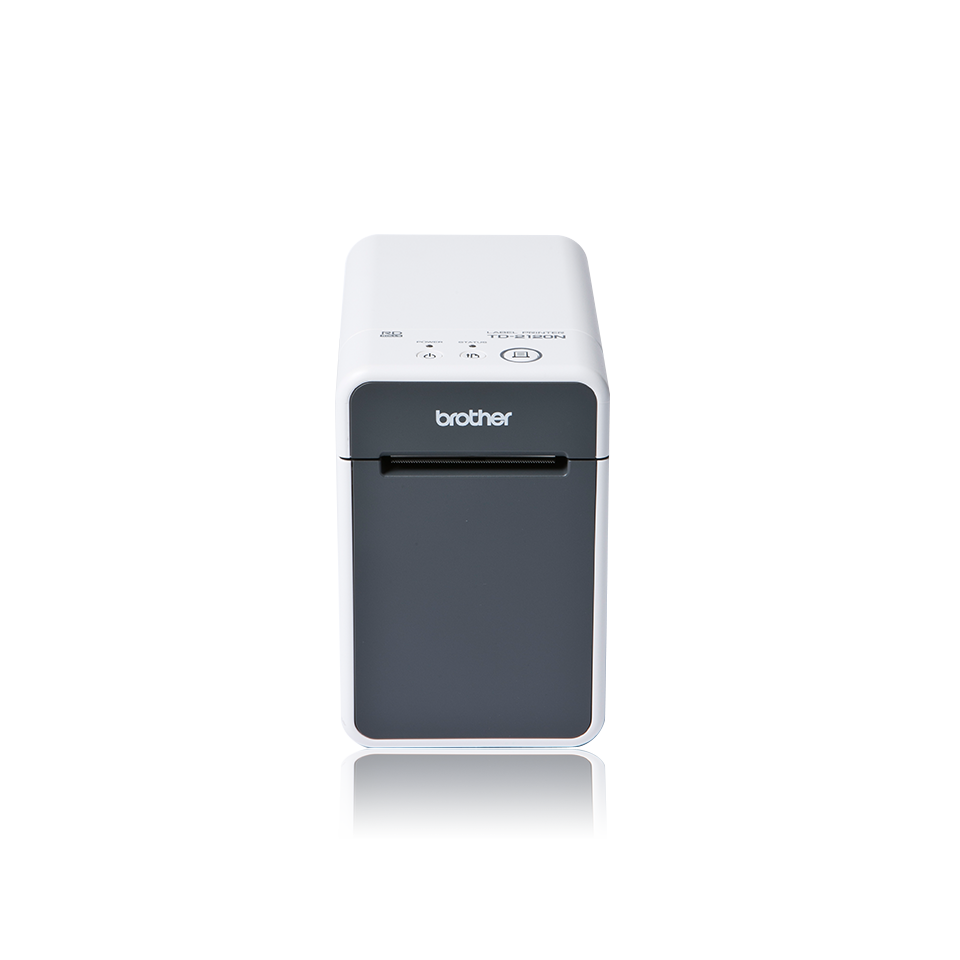

A compact machine with the speed, features and media capacity of a desktop printer plus the option to get out and about if you need to, the TD-2120N allows you to print professional quality custom labels or receipts at 200dpi, wherever you are in the workplace.

Printing from your existing systems is simple thanks to our range of software developer kits, plus the optional wireless means you can connect direct from your mobile device or PC for ultimate convenience. You can also add a battery and touchscreen to go truly portable.

The flexible TD-2120N can accommodate rolls of up to 5” in diameter, meaning less time wasted reloading media, plus there’s a choice of optional extras that ensure it’s perfectly suited to your business needs.



Maximum label width (mm) 62
Office Industrial
Buttons Power, Feed
Memory capacity 6 MB
Technology Direct thermal


Serial RS232C Original serial cable -PA-SCA-001
USB interface USB Ver. 2.0 (Full Speed) (mini-B, Peripheral)
Wired network interface 10/100BASE-TX
Wirelesss network interface IEEE802.11 b/g/n

Dimensions & weights

Dimensions 110 mm (W) x 215 mm (D) x 172 mm (H)
Weight 1.34 kg

In the box

AC adaptor Yes
Label design software Included
Software disc CD ROM
USB cable Yes
User guide Yes
Quick setup guide Yes


Wireless network Wireless LAN IEEE802.11 b/g/n
Wireless network security Infrastructure Mode/Adhoc Mode

Operating systems & software

Windows Windows 7, Windows 8, Windows Vista, Windows XP


Maximum print length 1000 mm
Maximum print width 56 mm
Resolution (dpi) 203
Standard print speed 152.4 mm per second
Supported commands P-touch Template 2.0 (includes ZPLII® emulation), Raster, ESC/P


SDK (Software Development Kit) Yes

Supplies and accessories

Optional accessories Rechargeable Battery (PA-BT-4000LI), Battery Base (PA-BB-001), Touch Panel Display (PA-TDU-001), Label Peeler (PA-LP-001), Bluetooth Interface (PA-BI-001), WLAN Interface (PA-WI-001), Serial Adapter (PA-SCA-001)


Warranty 3 year warranty
Show more +
Show Less -

Support and downloads

woman sat at a desk on a laptop

Downloads & Drivers

Download and install the latest drivers and software for your Brother products.

View Downloads
man and a woman sat a desk on a laptop


Find the answers to our most frequently asked questions and troubleshooting here.

View FAQs
man sat on a sofa working on a tablet

Manuals & Guides

Download the latest manuals and user guides for your Brother products

View Manuals

More about this product...

TD-2120N Professional Barcode Network Label Printer

Designed for use on a cart or virtually any retail, medical or other work space, the TD-2120N is among the most compact and fastest 56mm wide powered desktop/network thermal printers for retail applications. At 203dpi, it prints price, mark-down, product identification, returns and shelf-edge labels quickly at up to 150mm/second. Also prints tags and receipts for kiosk and POS applications.

An innovative drop-in roll with a spindle-less design helps make loading easy with various sized media. Windows Server® 2012/2008R2/2008/2003 and Windows® 8/7/XP drivers, (ZPL II® compatibility,) and SDK's for iOS®, Android® and Windows Mobile® helps with integration into existing retail solutions.
