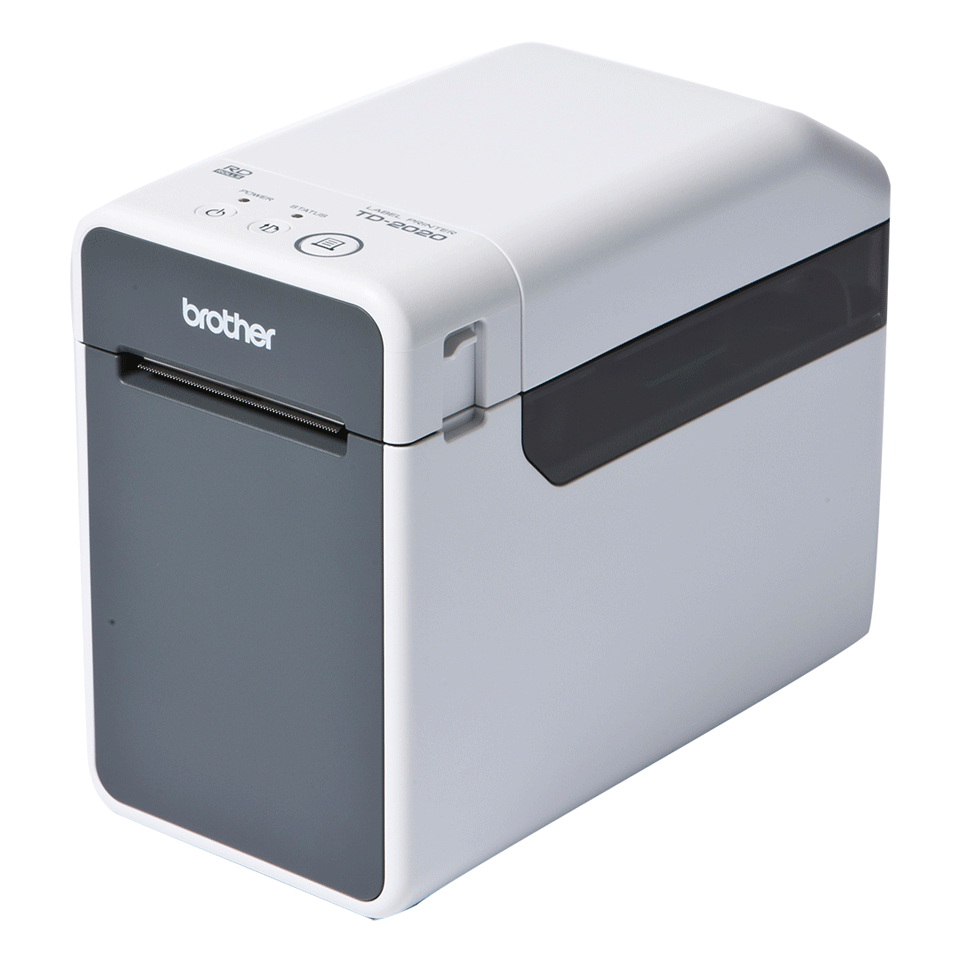

TD-2020A - Desktop Label Printer

Designed for use in almost any retail or other work space, the TD-2020A is a compact and fast 56mm wide desktop thermal printer. Perfect for printing price, mark-down, product identification, returns and shelf-edge labels quickly at up to 152mm/second.

TD-2020A - Desktop Label Printer
TD-2020A - Desktop Label Printer 2
TD-2020A - Desktop Label Printer 3

Find a local store

USB & serial connectivity

Up to 152mm/second print speed

High quality 203dpi print resolution

Product Details

TD2020A_main

32MB RAM, 16MB Flash

ZPL II printer language emulation

P-touch Editor 5 software - works on Windows

Key Features

  • USB & serial connectivity
  • Up to 152mm/second print speed
  • High quality 203dpi print resolution
  • 32MB RAM, 16MB Flash
  • ZPL II printer language emulation
  • P-touch Editor 5 software - works on Windows

About Product:

Increasing productivity and reducing costs are priorities in any workplace. When it comes to label printing, the TD-2020A combines proven desktop printer performance with new levels of efficiency to help you do more for less.

Specifications More about this product...

Specifications

General

Flash RAM 16 MB
RAM 32 MB
Technology Direct thermal

Connectivity

Serial Option: RS-232C
USB interface Ver 2.0 Full Speed

Dimensions & weights

Dimensions 110 mm (W) x 215 mm (D) x 172 mm (H)
Weight 1.32 kg

In the box

AC adaptor Yes
Power supply cord Yes
USB cable Yes
User guide Yes
Quick setup guide Yes

Operating systems & software

Supported OS For full list of compatible operating systems visit support.brother.com

Printing

Bitmap fonts Up to 10 (depending on emulation used)
Maximum label width 63 mm
Maximum print length 1000 mm
Maximum print width 56 mm
Outline/Vector fonts Up to 4 (depending on emulation used)
Resolution (dpi) 203
Standard print speed 152.4 mm per second
Supported commands P-touch Template 2.0 (includes ZPLII emulation), Raster, ESC/P

Solutions

SDK (Software Development Kit) Yes

Warranty

Warranty 3 Year Return to Base
Show more +
Show Less -

Support and downloads

woman sat at a desk on a laptop

Downloads & Drivers

Download and install the latest drivers and software for your Brother products.

View Downloads
man and a woman sat a desk on a laptop

FAQs

Find the answers to our most frequently asked questions and troubleshooting here.

View FAQs
man sat on a sofa working on a tablet

Manuals & Guides

Download the latest manuals and user guides for your Brother products

View Manuals
Technical Specifications

More about this product...

TD-2020A Professional Barcode Label Printer

Designed for use in almost any retail or other work space, the TD-2020A is among the most compact and fastest 56mm wide desktop thermal printers for retail applications. At 203dpi, it prints price, mark-down, product identification, returns and shelf-edge labels quickly at up to 152mm/second. Also prints tags and receipts for kiosk and POS applications.

An innovative drop-in roll with a spindle-less design helps make loading easy with various sized media. Windows® drivers (and ZPL II compatibility) helps with integration into existing retail solutions. Comes with Brother label design and print software application (download).
