QL810W

Label printer with USB, Wi-Fi and AirPrint. Prints both black and red text.

Discontinued Product

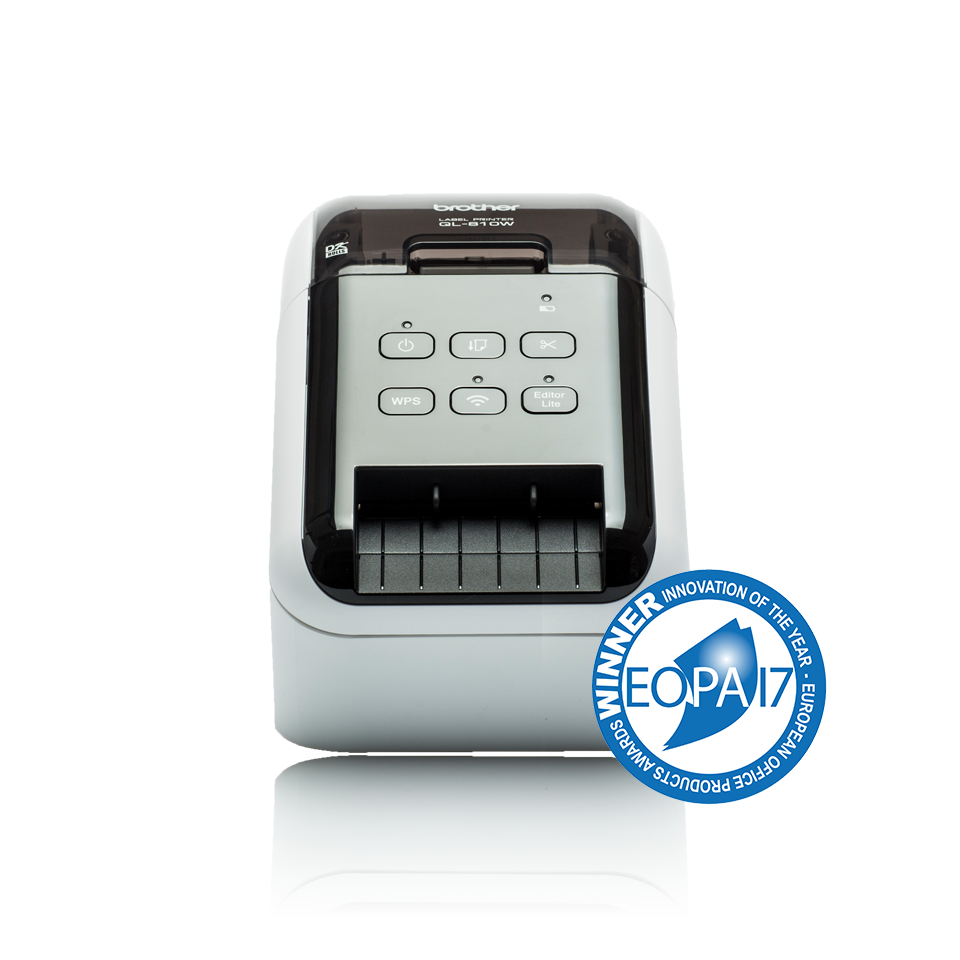

QL810W_main

Specifications

General

Maximum label width (mm) 62
Database upload from PC Yes
Housing colour Glossy black and white
Image upload from PC Yes
Memory capacity 6 MB
Memory locations 99
Technology Direct thermal
Template upload from PC Yes

General Supplies

Type DK rolls (DK die-cut labels / DK continuous length tape)

Connectivity

AirPrint Yes
USB interface Ver 2.0 (full speed)
Wi-Fi Direct Yes
Wirelesss network interface IEEE 802.11 b/g/n

Dimensions & weights

Dimensions 125mm (W) x 234mm (D) x 145mm (H)
Weight 1.12 kg

In the box

AC adaptor Yes
AC adaptor power cord Yes
Tape cassettes 29mm x 90mm black print on white standard address labels (100 labels) - 62mm black/red print on continuous length paper tape (5 meters)
USB cable Yes
User guide Yes
Warranty card Yes
Quick setup guide Yes

Network

Wireless network security WEP, WPA-PSK/WPA2-PSK （TKIP/AES), LEAP (CKIP), EAP-FAST (TKIP/AES), PEAP (TKIP/AES), EAP-TTLS (TKIP/AES), EAP-TLS (TKIP/AES)

Printing

1 dimensional barcode symbologies CODE39, CODE128, UCC/EAN-128(GS1-128), ITF(I-2/5), CODABAR(NW-7), UPC-A, UPC-E, EAN13(JAN13), EAN8, GS1 DataBar(RSS)(GS1 DataBar Omnidirectional,GS1 DataBar Truncated,GS1 DataBar Stacked,GS1 DataBar Stacked Omnidirectional,GS1 DataBar Limited,GS1 DataBar Expanded,GS1 DataBar Expanded Stacked)
2 dimensional barcode symbologies PDF417(Standard, Truncate, Micro), QR Code(Model 1, Model 2, Micro), Data Matrix (ECC200 Square, ECC200 Rectangular), MaxiCode, CODE93, POSTNET, UPC-E EXTENSION
Black and red printing capability Yes
Bitmap fonts Helsinki, Brussels, Letter Gothic Bold, San Diego, Brougham
Maximum label width 62 mm
Maximum print width 58 mm
Outline/Vector fonts Helsinki, Brussels, Letter Gothic
Resolution (dpi) 300 x 300, 300 x 600
Standard print speed 110 labels per minute
Standard print speed 176 mm per second

P-touch Editor label design software

Database file compatability csv, Microsoft Access, Microsoft Excel
Date and time stamp Date and time
Fonts All installed truetype fonts
Frames 126
Label orientations Horizontal, Vertical
Microsoft Office add-in (highlight->click->print) Excel, Outlook, Word
Screen capture Yes
Sequential numbering 1 - 9999 / A - Z / a - z
Text alignment Centre, Justify, Left, Right
Typestyles Bold, Horizontal lines, Invert, Italic, Normal, Shadow, Shadow light, Surround
Vertical print Yes

Solutions

SDK (Software Development Kit) Yes

Warranty

Warranty 1 year back to base warranty (upon registration)
Show more +
Show Less -

Support and downloads

woman sat at a desk on a laptop

Downloads & Drivers

Download and install the latest drivers and software for your Brother products.

View Downloads
man and a woman sat a desk on a laptop

FAQs

Find the answers to our most frequently asked questions and troubleshooting here.

View FAQs
man sat on a sofa working on a tablet

Manuals & Guides

Download the latest manuals and user guides for your Brother products

View Manuals
Technical Specifications

Industry uses

Office

With wireless printing, multi-users can benefit from highly visible mail and files using eye-catching black and red labels from our two-colour roll. Print in black on both continuous roll and pre-sized labels too.

Create bespoke address labels, storage box labels, file folder labels cabinet labels, shelf labels, name badge labels, indoor temporary signage, office supplies labels, office furniture labels office equipment labels and more.

Visitor Management

Improve visitor management with highly visible black and red ID badges printed on our two-colour continuous roll, and highlight dates, times, access areas and fire points. Wi-Fi connection lets you conveniently print labels from anywhere and across multiple devices including a smartphone or tablet via the app. The optional battery base offers a mobile solution.

Applications include visitor badge labels, address labels and indoor temporary signage.
