MFC-L9570CDW

Professional all-in-one colour laser printer

MFC-L9570CDW
MFC-L9570CDW 2
MFC-L9570CDW 3
MFC-L9570CDW 4
MFC-L9570CDW 5
MFC-L9570CDW 6
MFC-L9570CDW 7

1 356,29 € Inc. VAT

Find a local store

Up to 31ppm colour & mono print speed

100ipm colour & mono 2-sided scan

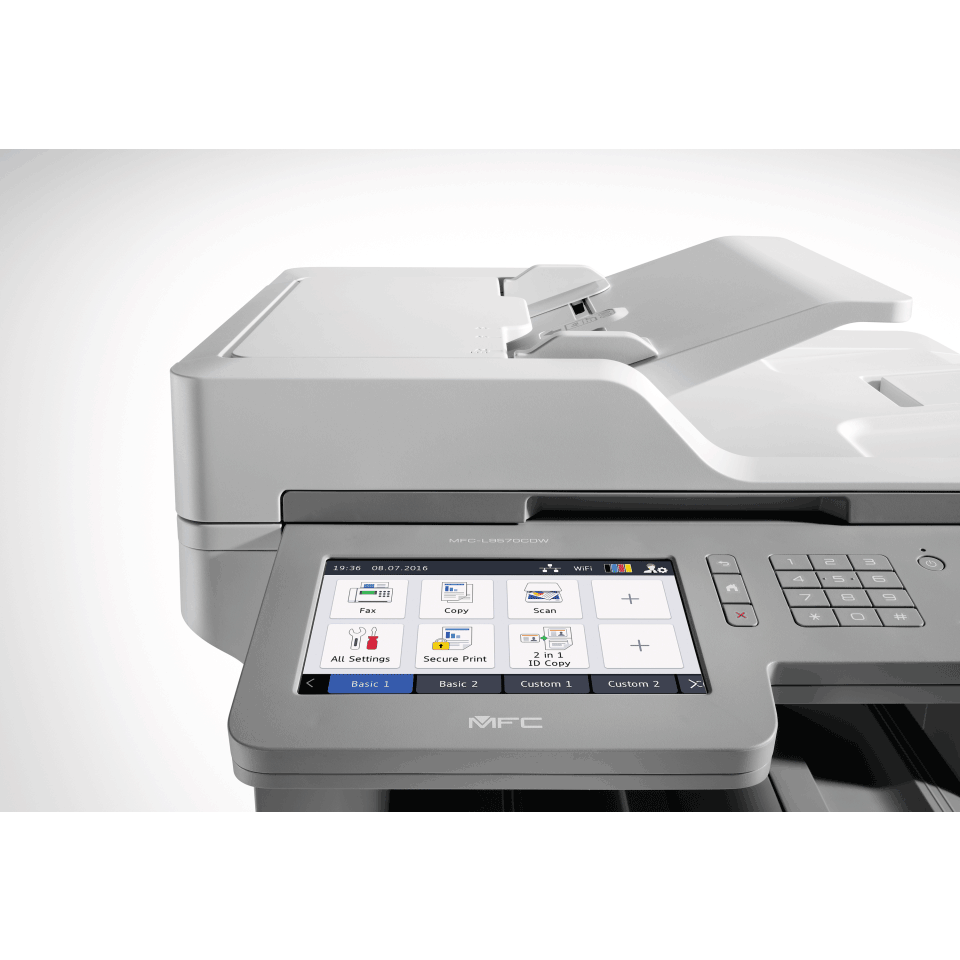

16.5cm touchscreen

Product Details

MFCL9570CDW_main

USB, Wireless and Gigabit Wired network

NFC (for mobile print & card authentication)

Up to 6,500 Black, Cyan, Magenta & Yellow inbox toners

Key features

  • Up to 31ppm colour & mono print speed
  • 100ipm colour & mono 2-sided scan
  • 16.5cm touchscreen
  • USB, Wireless and Gigabit Wired network
  • NFC (for mobile print & card authentication)
  • Up to 6,500 Black, Cyan, Magenta & Yellow inbox toners

About Product:

The versatile paper handling is the highlight of this model. With a number of optional lower paper trays, less time can be spent replenishing paper, maximising device uptime.

With impressive scan and printing speeds, you can be sure that the MFC-L9570CDW will be a great asset to your business.

Compatible with

Specifications More about this product...

Supplies & Accessories

Show more +
Show Less -
Show more +
Show Less -
Show All Supplies

Specifications

General - Printers

Printer type Colour
Functions Print, Copy, Scan, Fax
Laser classification Class 1 laser product (IEC 60825-1:2007)
Max paper size A4
Memory 1GB
Processor 800MHz – Sub: 133Mhz
Technology Laser
Display size 17.6cm

Brother Apps

Creative Center Yes
Easy Scan to Email Yes
Enlarge Text Copy Yes
Fax Forward to Cloud Yes
Note Scan Yes
Office Doc Creator Yes
Scan to Mobile Yes
Scan to Searchable PDF Yes

Connectivity

Connectivity Wired Network, Wireless
Local interface Hi-Speed USB 2.0
NFC NFC support mobile devices for printing and scanning
Wi-Fi Direct Print wirelessly without having to go through a wireless access point
Wired network interface 10Base-T/100Base-TX
Wirelesss network interface IEEE 802.11b/g/n

Mobile connectivity

Supported AirPrint, Android Print Service Plugin, Google Cloud Print 2.0, iPrint&Scan, Mopria, NFC, Wi-Fi Direct™

Copying

2-sided copy Yes
Resolution Up to 1,200 x 600dpi
Speed Up to 31cpm (copies per minute) colour & mono
Enlargement / reduction ratio Reduce or Increase document sizes from 25% to 400% in 1% increments
N in 1 Yes

Dimensions & weights

With carton 675 (W) x 652 (D) x 726 (H) mm
With carton 36.1 kg
Without carton 495 (W) x 526 (D) x 549 (H) mm
Weight 29.7 kg

Environmental

Sound power Printing – 6.56BA, quiet mode printing – 6BA, ready – Inaudible
Sound pressure Printing – 49dbA, quiet mode printing – 44dbA, ready – Inaudible
Nordic Swan environmental accreditation Yes
Power consumption Printing - 580W, ready - 70W, sleep – 10W, deep sleep – 1.4W, power down - 0.03W
Typical electrical consumption 0,637kWh/Week

Faxing

Automatic 2 sided faxing Yes
Internet fax Yes
PC Fax Yes
Fax modem 33600 kbps

In the box

Contents Supplies, Power supply cord, Fax Line Cord, Product safety guide, Windows® Software disc, Warranty card, Quick setup guide

Media specifications

Types and sizes Standard & Optional Trays – plain, recycled, coloured and letterhead (between 60 - 105g/m2) Multi Purpose Tray - plain, recycled, bond, coloured, letterhead and glossy paper (between 60 -163g/m2) 2-sided Print - plain, recycled, coloured, letterhead and glossy paper (between 60 - 105g/m2) Automatic Document Feeder - Plain & recycled paper (between 64 - 90g/m2)
Weights Standard Tray - A4, Letter, A5, A5(Long Edge), A6, Executive, Legal, Folio, Mexico Legal Multi Purpose Tray- Width: 76.2mm to 215.9mm x Length: 127mm to 355.6mm Automatic Document Feeder - Width: 105mm to 215.9mm x Length: 147.3mm to 355.6mm 2-sided Print – A4

Network

Wi-Fi Direct™ Yes
Wired network Ethernet 10Base-T/100Base-TX/1000Base-T
Wired network security SMTP-AUTH, SSL/TLS (IPPS, HTTPS, SMTP), SNMP v3 802.1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), Kerberos, IPSec
Wireless network IEEE 802.11b/g/n
Wireless network security WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES) APOP, SMTP-AUTH, SSL/TLS (IPPS, HTTPS, SMTP, POP3, IMAP4), SNMP v3, Kerberos, IPsec, 802.1x (LEAP, EAP-FAST, PEAP, EAP-TLS, EAPTTLS)

Operating systems & software

Supported Windows 10® (32 & 64 bit editions) Windows 8® (32 & 64 bit editions) Windows 7® (32 & 64 bit editions) Windows® Server 2016, 2012, 2012R2 & 2008R2 Windows® Server 2008 (32 & 64 bit editions)* *Windows® Server supports network printing only Mac: OS v10.10.5, v10.11.x, v10.12 or greater Linux CUPS, LPD/LPRng (x86/x64 environment)

Paper handing

Paper input Standard Tray - Up to 250 sheets, Multi Purpose Tray - Up to 50 sheets, ADF (Automatic Document Feeder) - Up to 80 sheets
Paper output Face Down - 150 sheets Face Up (Straight Paper Path) - 1 sheets

Printing

Resolution 2,400dpi (2,400 x 600dpi), 600 x 600dpi
A4 standard colour print speed 31 pages per minute
A4 standard mono print speed 31 pages per minute
Automatic 2 sided print Yes
First print out time Less than 15 seconds
Recommended monthly volume Up to 6,000 pages

Scanning

2-Sided scan Yes
Resolution Up to 1,200 x 2,400dpi (from flatbed), 1,200 x 600dpi (from ADF), 19,200 x 19,200dpi (Enhanced)
Speed 50ppm/100ipm colour & mono
Scanner type Dual CIS

Security features

802.1x Yes
Secure function lock v3 Yes
Secure print Yes
Setting lock Yes

Solutions

Supported PrintSmart Secure Pro, PrintSmart Cost Control, Box, Brother Apps, BSI, Cortado Cloud Print, Dropbox, Google Drive, OneDrive, OneNote, Evernote

Supplies and accessories

Accessories Optional Lower Tray- LT-330CL- Up to 250 Sheets. Optional Lower Tray- LT-340CL- Up to 500 Sheets. Tower Tray (TT-4000 - TC-4000 connector also needed), Card Reader Holder CH-1000.
Supplies Inbox Toner - Up to.6,500 pages Black, Cyan, Magenta & Yellow. Ultra High Yield -Up to 9,000 pages Black, Cyan, Magenta & Yellow Drum Approx. 30,000 pages (1page/job), Approx. 50,000 pages (3page/job) Belt Approx. 50,000 pages (1page/job), Approx. 130,000 pages (3page/job) Waste Toner Box (WT-320CL) Approx 50,000 pages

Warranty

Warranty Two Year Manufacturer's Warranty (Year 1 on-site, Year 2 Back to base)
Show more +
Show Less -

Support and downloads

woman sat at a desk on a laptop

Downloads & Drivers

Download and install the latest drivers and software for your Brother products.

View Downloads
man and a woman sat a desk on a laptop

FAQs

Find the answers to our most frequently asked questions and troubleshooting here.

View FAQs
man sat on a sofa working on a tablet

Manuals & Guides

Download the latest manuals and user guides for your Brother products

View Manuals
Technical Specifications

More about this product...



Maximise Performance

The speedy new MFC-L9570CDW, enables you to easily improve efficiency and productivity. Enhanced document scanning and an Automatic Document Feeder that holds up to 80 sheets of paper, offer a quick and simple way to scan direct to the cloud or your network. With the touch of a button, you can also customise the touchscreen with your own time-saving shortcuts, while longer-life cartridges mean more time working and less time changing toner. And if your business grows, the MFC-L9570CDW can grow with it, providing expandable lower and tower paper trays that give you extra capacity



Tighter Security

The advanced security capabilities of the MFC-L9570CDW*, ensures you are always in full control of your print infrastructure. You can improve data protection by restricting machine access with network user authentication, and secure function lock, which allows you to password-protect certain device functions. Plus, the NFC reader can be used to integrate with secure printing, enabling users to release their print job from any chosen device by swiping an ID card or entering a PIN.

(*Includes MFC-L9570CDW, MFC-L9570CDWT versions)

Better reliability

Built to perform for longer and meet the demands of high output work environments, Brother's latest colour laser range has been totally remodelled with robust build quality that’s even more resilient and hardwearing.
