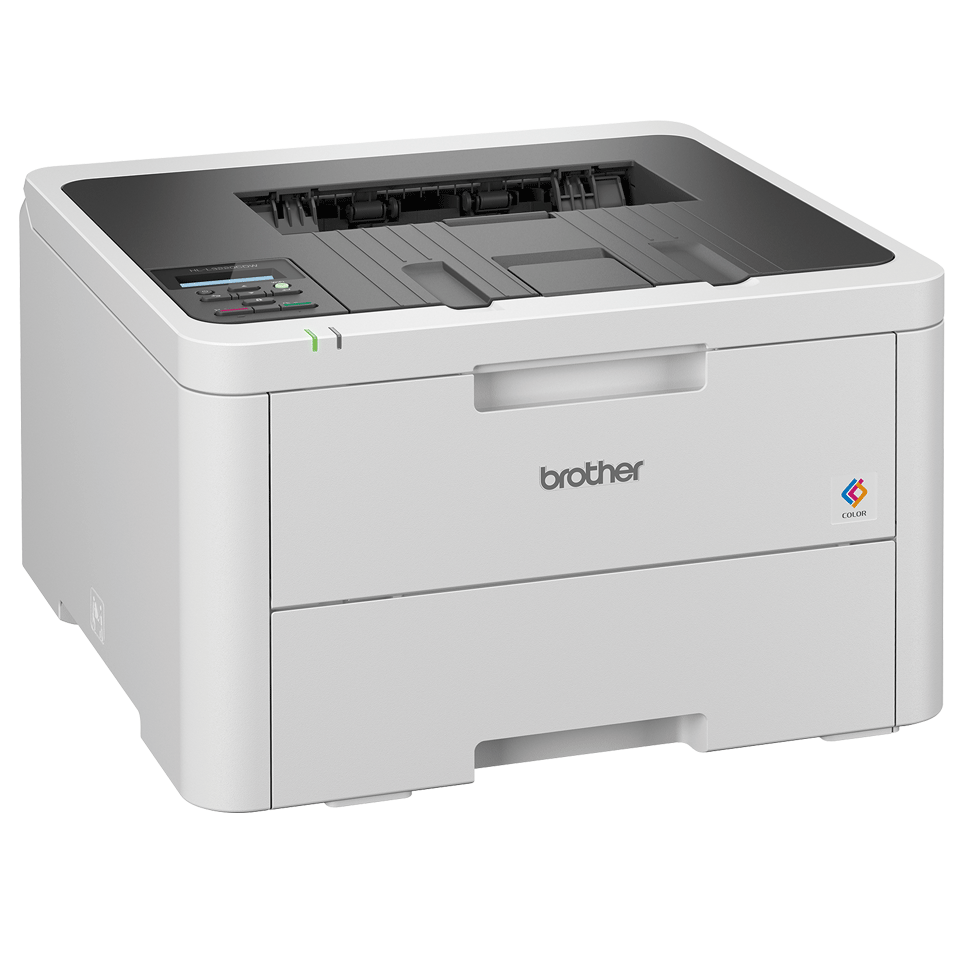

HL-L3220CW - Colourful and Connected LED Printer

Discover fast and flawless colour printing with an LED device. Designed for busy homes and small offices, the HL-L3220CW offers quiet printing without sacrificing quality.

274,78 € Inc. VAT

Print up to 18 pages per minute

5GHz WiFi and USB

User-friendly 1 line LCD control panel

Product Details

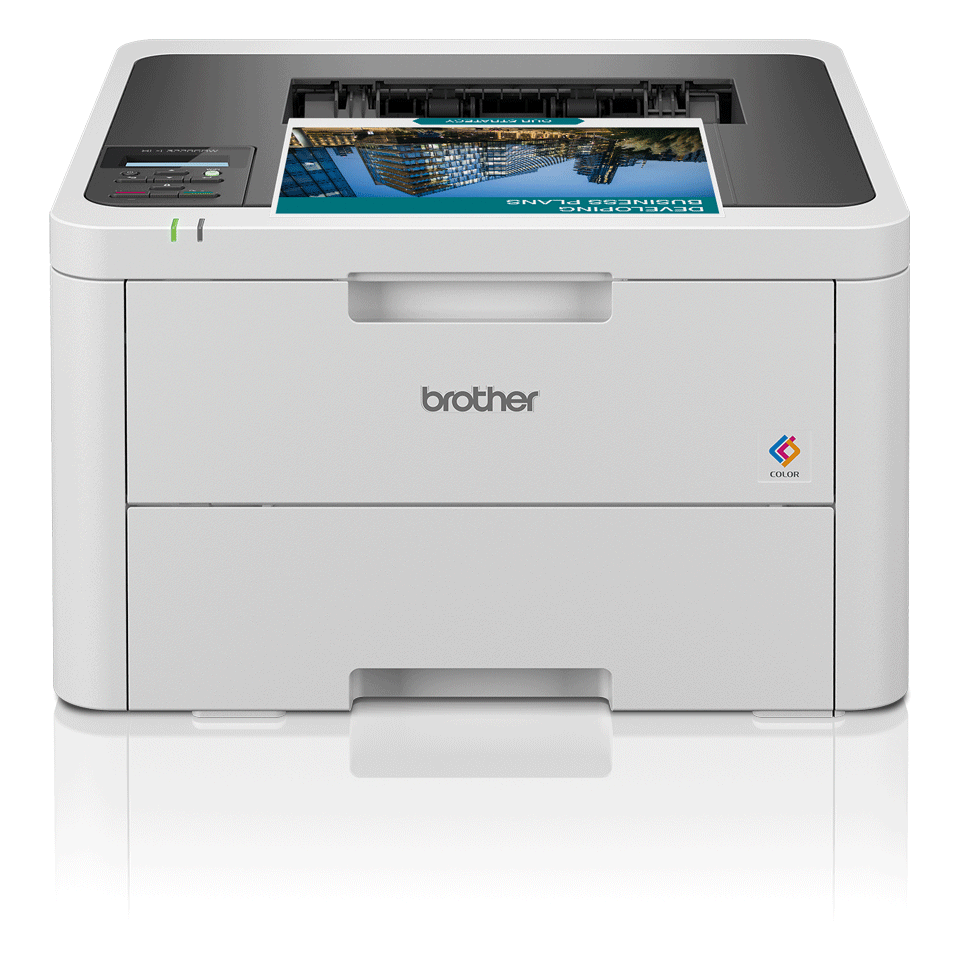

HLL3220CW_main

250 Sheet paper input capacity11

256MB Internal memory

1,000 Page yield inbox toner, 3,000 page mono 2,300 page colour high yield available8

  • Print up to 18 pages per minute
  • 5GHz WiFi and USB
  • User-friendly 1 line LCD control panel
  • 250 Sheet paper input capacity11
  • 256MB Internal memory
  • 1,000 Page yield inbox toner, 3,000 page mono 2,300 page colour high yield available8

About Product:

The office and home environment is continuously changing with the goal of increasing efficiency and productivity. Be confident that you have a reliable device that prints quickly and effortlessly, with:

• 1 Line LCD control panel
• 5GHz WiFi and USB
• 256MB Internal memory
• 250 Sheet paper input tray11
• Comes with 1,000 black, 1,000 colour page yield toners, 3,000 black, 2,300 colour maximum yield available8

Compatible with

  • Brother Mobile Connect
  • Der Blaue Engel logo

Specifications

General - Printers

Printer type Colour
Functions Print
Display LCD
Display size 1 Line LCD with Keys
Max paper size A4
Memory 256MB Internal memory
Technology LED

*

* (*8) Approx. declared yield value in accordance with ISO/IEC 19798 (*11) Capacity calculated with 80gsm paper (*12) Sound pressure and sound power level in accordance with ISO 7779 (*13) Power consumption power off is measured according to IEC 62301 Edition 2.0 (*16) Windows only (*17) Optional download (*23) Power consumption is measured using ENERGY STAR Ver 3.1 test method network configuration

Connectivity

Connectivity Wireless, USB
Local interface Hi-Speed USB 2.0
Wirelesss network interface 2.4GHz and 5GHz Support

Dimensions & weights

With carton 488 (W) x 488 (D) x 370 (H) mm - 17.50kg
Without carton 399 (W) x 399 (D) x 239 (H) mm - 14.70kg

Environment

Power consumption Printing: 430W Printing in quiet mode: 310W Ready: 70W Sleep: 10W Deep Sleep: 0.5W Power Off: 0.04W (*13) (*23)
Sound power Printing: Mono 6.25B(A) Colour 6.17B(A) Ready: Inaudible Quiet Mode: Mono 5.86B(A) Colour 5.92B(A) Deep Sleep: Inaudible (*12)
Sound pressure PC Printing: Approx. 46.0db(A) Ready: Inaudible Quiet Mode: 43.0db(A) (*12)

Environmental

Blue Angel environmental accreditation Yes
Nordic Swan environmental accreditation Yes
Typical electrical consumption 0.28 kWh/Week

In the box

Contents Device, Inbox Toners, Drum Unit, Belt Unit, Waste Toner Box, Power Supply Cord, Quick Set-Up Guide, Warranty Card

Media specifications

Types and sizes Standard Tray A4, Letter, Legal, Mexico Legal, India Legal, Executive, A5, A5 Long Edge, A6, B5 (JIS), B5 (ISO), B6 (JIS), A4 Short (270mm), Folio, 16K (195x270mm) Manual Feed Slot Width 76.2 to 216 mm Length 116 to 355.6 mm Envelope; COM-10, DL, C5, Monarch
Weights Standard Tray Plain Paper, Thin Paper, Recycled Paper, 60 to 105g/m2 Manual Feed Slot Plain Paper, Thin Paper, Recycled Paper, Bond, Label, Envelope, Env. Thin, Env. Thick, Glossy Paper, 60 to 105g/m2

Network

Wi-Fi Direct™ Yes
Wireless applications Yes
Wireless network 2.4GHz: IEEE 802.11 b/g/n (Infrastructure Mode) IEEE 802.11 g/n (Wi-Fi Direct) 5GHz: IEEE 802.11 a/n (Infrastructure Mode) IEEE 802.11 a/n (Wi-Fi Direct)
Wireless network security WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA3-SAE (AES) *Wi-Fi Direct supports WPA2-PSK (AES) only. SMTP-AUTH, SSL/TLS (IPP, HTTP, SMTP), SNMP v3, 802.1x (EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), Kerberos, IPsec
Wireless setup support Yes

Operating systems & software

Supported OS For full list of compatible operating systems visit support brother com

Paper handing

Paper input Standard Tray 250 Sheets Manual Feed Slot 1 Sheet (*11)
Paper output 150 Sheets A4 Envelope Printing Yes from manual feed slot (*11)

Printing

Resolution Up to 600 x 2,400dpi
A4 standard colour print speed 18 pages per minute
A4 standard mono print speed 18 pages per minute
Emulations PCL5e, PCL5c, PCL6 (PCL XL Class 3.0), BR-Script3, PDF Version 1.7
First print out time Less than 15.0 seconds
Recommended monthly volume Up to 3,000 pages

Security features

802.1x Yes
Automatic Intrusion Detection Yes
Digitally-signed Firmware Yes
IP filter Yes
Port based Network Access Control Yes
Restrict network protocols Yes
Secure function lock v3 Yes
Secure print Yes
Setting lock Yes
Store Print Log Yes
SysLog Yes

Supplies and accessories

Supplies Inbox Toner 1 x 1,000 pages (BK) 1 x 1,000 pages (CMY) Standard Yield Toner TN248 1,000 pages (BK) 1,000 pages (CMY) High Yield Toner TN248XL 3,000 pages (BK) 2,300 pages (CMY) (*8) Drum Unit DR248CL Approx. 20,000 pages at 1 page per job Belt Unit BU229CL Approx. 50,000 pages at 2 pages per job Waste Toner Box WT229CL Approx. 50,000 pages at 5 pages per job
Show more +
Show Less -

Support and downloads

woman sat at a desk on a laptop

Downloads & Drivers

Download and install the latest drivers and software for your Brother products.

View Downloads
man and a woman sat a desk on a laptop

FAQs

Find the answers to our most frequently asked questions and troubleshooting here.

View FAQs
man sat on a sofa working on a tablet

Manuals & Guides

Download the latest manuals and user guides for your Brother products

View Manuals

More about this product...

MFC-L3740CDW Lifestyle Overview Tile 1

Quiet without Compromise

Print quietly without having to compromise on speed or quality. This device prints full colour pages quickly and flawlessly whilst still being quieter than your average office conversation, making this device perfect for desktop working.
Brother Mobile Connect Print from anywhere

Print from anywhere

With Brother Mobile Connect, you can fully operate your Brother printer from your fingertips. Print and scan documents on the move and order genuine Brother supplies straight to your door. You can also personalise your frequently used features and unlock a revolutionary way of printing from your mobile device. Download the app on your mobile device to get started. Find out more..
Man sat at desk working on a laptop

Secure by design

To keep pace with the ever-evolving legislation on privacy and data security, our devices offer the latest industry-standard security features to securely protect your data. Our security experts continuously research new enhancements to products, solutions and services to proactively ensure all our products are ‘secure by design’.This device provides a range of robust features. It uses triple-layer security at a device,network and document level. This offers added peace of mind and guarantees that the integrity of your data is maintained at every step.
Brothers HL-L3220CW one line control panel

Effortless

Make your day easier and your printing effortless, with simple set up and 5GHz WiFi or USB connection. This efficient HL-L3220CW is a breeze to operate using the easy to navigate control panel.
Brothers HL-L3220CW with large paper input tray shown open

Save time

High quality LED print technology ensures that your output is flawless and professional every time. The expertly designed HL-L3220CW has a high capacity paper input and output tray allowing you to print for longer.
