Brother TD-4420TN Thermal Transfer Desktop Label Printer

This versatile label printer uses media up to 112mm/4.41-inch wide and prints at 203dpi. It's high capacity ink ribbons require less frequent changing ensuring maximum up-time.

560,74 € Inc. VAT

203dpi printing for crisp text and barcodes

Direct thermal printing and thermal transfer print using high capacity ink ribbons

Up to 152mm/second print speed

Product Details

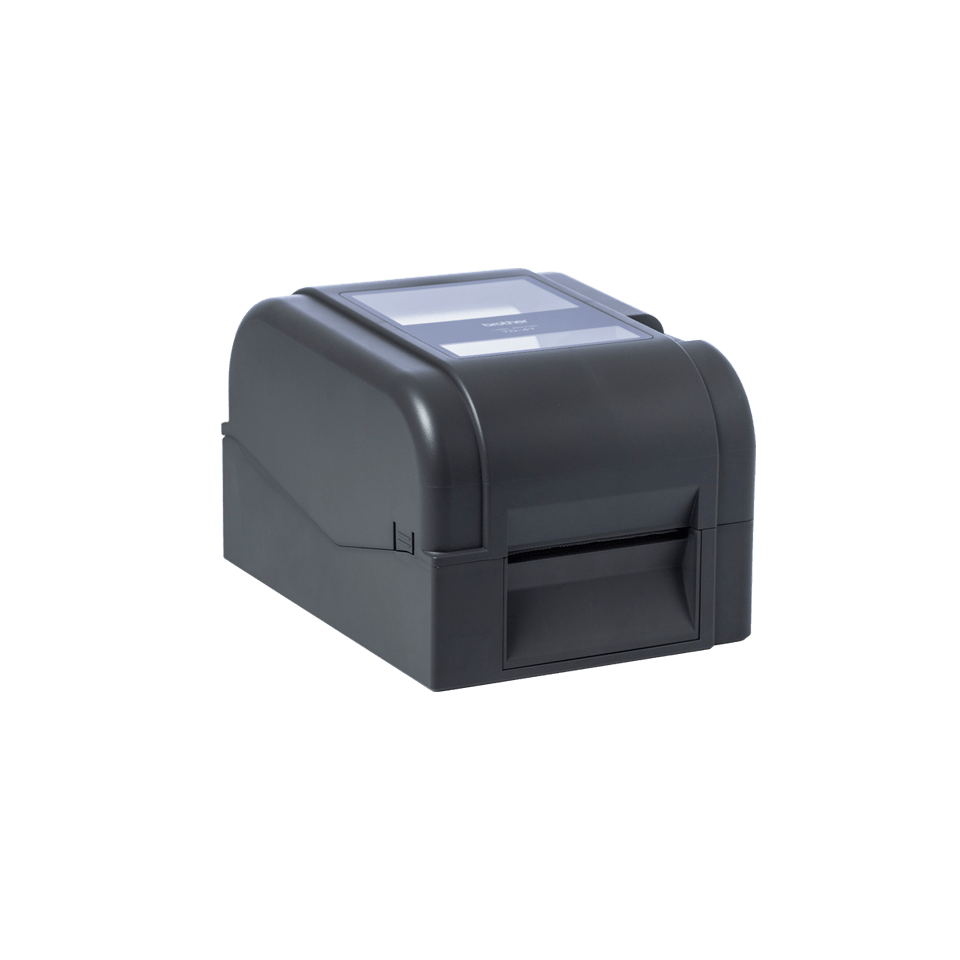

TD-4420TN label printer front view

USB, wired ethernet and serial ports as standard

Supports popular printer languages including ZPL/ZPL2, EPL and DPL

Free label design software available via download

Key features

  • 203dpi printing for crisp text and barcodes
  • Direct thermal printing and thermal transfer print using high capacity ink ribbons
  • Up to 152mm/second print speed
  • USB, wired ethernet and serial ports as standard
  • Supports popular printer languages including ZPL/ZPL2, EPL and DPL
  • Free label design software available via download

About Product:

Improve productivity by using high capacity thermal transfer ink ribbons for durable labelling. Supports industry standard printer commands. A wide range of ribbons, labels and accessories gives you the option for full customisation to your exact needs.

Supplies & Accessories

Show more +
Show Less -

Specifications

General

Buttons Feed
Flash RAM 128 MB
LED Power, Data, Error
RAM 64 MB
Technology Thermal transfer / Direct thermal

Connectivity

Serial RS-232C (DB9 female)
USB interface Type B: Ver. 2.0 High Speed | Type A: USB Host (mass storage device class)
Wired network interface 10/100 BASE-TX (ARP, MAC, BOOTP, DHCP, DNS, WINS, FTP server, HTTP server, SNTP client, SMTP clpient, SNMP V1, Telnet, LPR/LPD, RAW 9100, IPV4, ICMP, IGMP, TCP, UDP

Dimensions & weights

Dimensions (W) 204mm x (H) 177.5mm x (D) 280mm
Weight 2.50 kg

In the box

Software Yes
Supplies Yes
AC adaptor Yes
AC adaptor power cord Yes
Device Yes
Label design software Bartender Ultra Lite Edition (free download) - for Windows only
USB cable Yes
Quick setup guide Yes

Operating systems & software

Supported OS For full list of compatible operating systems visit support brother com
Linux Linux
Macintosh Mac OS X 10.10.x or higher, Mac OS X 10.11.x or higher, Mac OS X 10.12.x or higher, Mac OS X 10.13.x or higher, Mac OS X 10.14.x or higher
Windows Server 2008, Server 2008R2, Server 2012, Server 2012R2, Server 2016, Windows 7, Windows 8, Windows 8.1, Windows 10

Printing

1 dimensional barcode symbologies Code128UCC, Code128 subsets A,B,C, EAN128, Interleaved 2 of 5, Interleaved 2 of 5 with check digit, Standard 2 of 5, Industrial 2 of 5, Code39, Code39 with check digit, Code93, EAN13, EAN8, UPCA, UPCE, EAN and UPC 2 (5) digits add-on, Codabar, Postnet, MSI, MSI with check digit, PLESSEY, China post, ITF14, EAN14, Code11, TELEPEN, TELEPEN number, PLANET, Code49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS
2 dimensional barcode symbologies CODABLOCK F mode, GS1 DataBar, GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF417, TLC39
Bitmap fonts FBPL: 8 alpha-numeric bitmap fonts
Label detection sensor Yes
Maximum label width 112 mm
Outline/Vector fonts Monotype Image TrueType font engine with one CG Triumvirate Bold Condensed font
Resolution (dpi) 203
Supported commands FBPL-EZD (EPL, ZPL, ZPL2, DPL)
Maximum print length 25400 mm
Maximum print width 108 mm
Standard print speed 152 mm per second

Warranty

Warranty 3 year return-to-base
Show more +
Show Less -

Support and downloads

woman sat at a desk on a laptop

Downloads & Drivers

Download and install the latest drivers and software for your Brother products.

View Downloads
man and a woman sat a desk on a laptop

FAQs

Find the answers to our most frequently asked questions and troubleshooting here.

View FAQs
man sat on a sofa working on a tablet

Manuals & Guides

Download the latest manuals and user guides for your Brother products

View Manuals

More about this product...

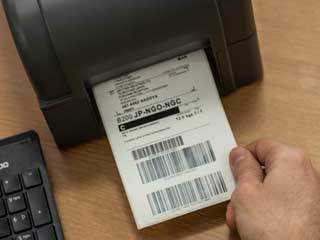

Label printed on a Brother TD-4D series label printer

Thermal transfer printing for ultimate flexibility

An industry standard 203dpi print resolution gives you crisp, easy-to-read logos, images and barcodes on coated and uncoated label stock using thermal transfer media and ink ribbons.

Thermal transfer print ribbons in wax or resin material to suit your application

Standard or premium high capacity ribbons of up to 300 metres can be used, and are available in wax for standard paper media, wax/resin for improved resistance to chemicals on paper and synthetic media or resin for the best durability against heat and chemicals.

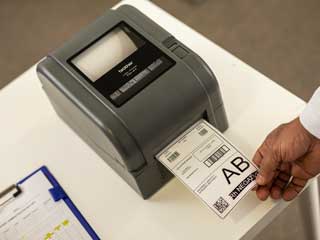

Label printed on a Brother TD-4D series label printer.

Supports industry standard printer commands

In addition to printing from Windows using the standard printer driver, you can integrate the Brother TD-4420TN label printer into your legacy systems thanks to ZPL/ZPL2 or EPL printer commands.

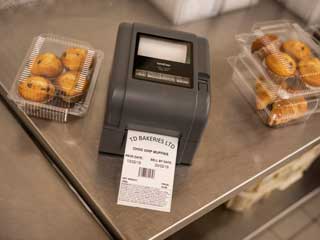

Brother TD-4D label printer on steel table next to cakes in a bakery

High print speed to improve efficiency

Printing at speeds up to 152mm/second (6 inches per second) ensures staff will have their labels almost immediately, and can spend their time being more productive.

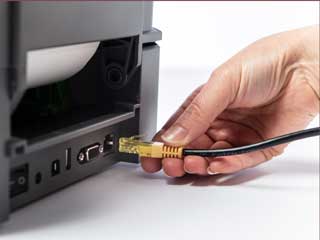

Ethernet cable being plugged into the rear port of a Brother TD-4D label printer

Wired connectivity to meet your exact needs

USB, Ethernet and Serial ports are included as standard, ensuring the Brother TD-4420TN will connect to your current equipment and infrastructure without problem.

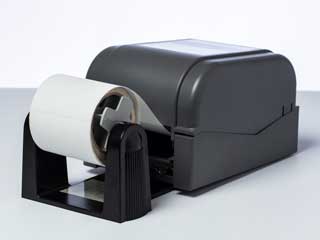

Option roll holder installed on a Brother TD-4D label printer

A range of accessories to improve staff efficiency

Improve productivity by adding an optional label peeler, label cutter or external roll holder to use much larger capacity rolls and reduce printer downtime. Dealer installable optional accessory.
