Labelling machine for the Datacom market

Manage your datacentre and network effectively by creating durable labels for easy identification of cables, patch panel ports, servers and other hardware.


Dedicated smartphone app and PC label design software makes it quick and easy to produce the labels required.
Prints labels up to 24mm in width. USB and Wi-Fi connections. Built-in NFC reader for easy smartphone connectivity. Automatic cutter with easy-peel label feature.

Key Features

  • Wi-Fi, NFC and USB to easily connect to your smartphone or PC
  • Dedicated labelling app to create labels suitable for the datacom market
  • Built-in cutter with easy label peel feature
  • High speed printing of up to 30mm/second
  • Supplied with 2 tape cassettes, Li-ion battery, AC adapter, USB cable and carry case
  • Prints 3.5, 6, 9, 12, 18 and 24mm labels


The PT-P750TDI is a fast and easy way to mark cables, network switches and other datacom equipment with a durable, long-life label.


Print labels from your smartphone, tablet or PC up to 24mm in width

Thanks to the built-in Wi-Fi*, you are now able to connect your smartphone or tablet to the PT-P750TDI and easily create labels using the free Brother Cable Label Tool app. Or connect to your PC using the USB cable supplied, to design fully customised labels that can also include your company logo or specialist symbols.


Templates for common labelling tasks

Use the templates in the free Brother Cable Label Tool app for smartphones and tablets or the P-touch Editor label design software for PC, to create labels for:

  • Patch panels
  • Cables
  • Faceplates
  • Punch-down blocks
  • Servers and any other network hardware


Easy peel labels

An advanced built-in cutter with half-cut function produces easy-peel labels - especially useful to print a strip of labels with sequential numbers in the correct order - simply peel off each one-at-a-time.



The wireless network and NFC interface allow easy connection to your mobile devices, or connect to your PC via the USB port to design and print fully customised labels from the P-touch Editor label design software.


Included items

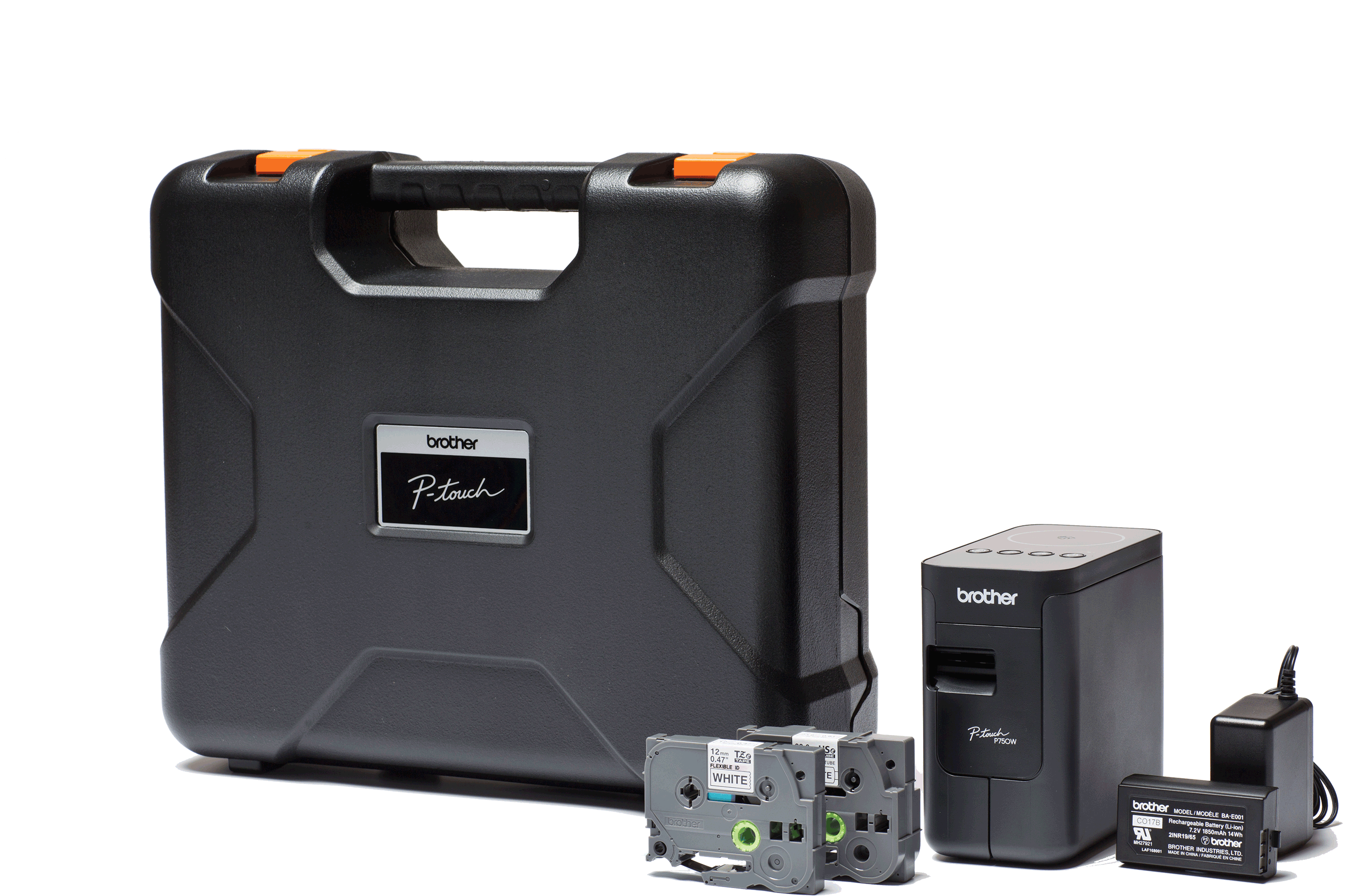

Everything you need is supplied a Li-ion battery, AC adapter and 2 labelling tape cassettes are all housed in a durable carry case.


Labels designed to last

Brother adhesive TZe tape cassettes come in a wide variety of widths and colours, and include specialist tapes for the datacom market such as strong adhesive, flexible ID (for wrapping around cables or creating flag labels), tamper evident security tapes. These laminated tapes are incredibly durable, and are designed to withstand extremes in temperature, sunlight, moisture, abraision and chemicals.


HSe Heat Shrink Tubes are an ideal method to identify cables when terminating network cables. Simply print the required information onto the heat shrink tube, slide over the cable and apply a heat gun to shrink the label around the connector or cable.


* Wi-Fi requires use of supplied Li-ion rechargeable battery or AC adapter. Wi-Fi function cannot be used with AA/LR6/HR06 batteries.

Specification Details

Features and Specifications

Machine type PC connectable
Maximum tape width (mm) 24
Alkaline batteries 6 x AA (LR6, HR6)
Cutter type Full and half, Auto
Technology Thermal transfer
Width 3.5, 6, 9, 12, 18, 24mm (TZe) | 5.8, 8.8, 11.7, 17.7, 23,6mm (HSe)
Type TZe Tape, HSe Tube
USB interface USB 2.0 Full Speed
Wirelesss network interface IEEE 802.11b/g
Dimensions 78mm (W) x 152mm (D) x 143mm (H)
Weight 0.82 kg
AC adaptor Yes
Carry case Yes
Li-ion battery Yes
Tape cassettes 12mm black on white TZe Flexible ID tape (8m), 23.6mm black on white HSe Heat Shrink Tube tape (1.5m)
USB cable Yes
User guide Yes
Warranty card Yes
Windows Windows 7, Windows 8, Windows Vista
Date and time stamp Date and time
Download content from Brother cloud Yes
Fonts All installed TrueType fonts
Frames 154
Image format support DIB, GIF, ICO, JPG, PNG, TIFF, WMF
Label orientations Horizontal, Vertical
Labelling wizard Cable
Languages English, German, French, Dutch, Italian, Spanish, Portuguese, Danish, Norwegian, Swedish, Finnish, Hungarian, Czech, Polish, Romanian, Slovenian, Slovakian, Croatian, Russian, Turkish, Brazilian Portuguese, Japanese, Simplified Chinese
Sequential numbering Yes
Tape colour detection Yes
Tape size detection Yes
Text alignment Centre, Justified, Left, Right
Typestyles Bold, Horizontal lines, Invert, Italic, Normal, Shadow, Shadow light, Surround
